Technology

產品簡介

Features

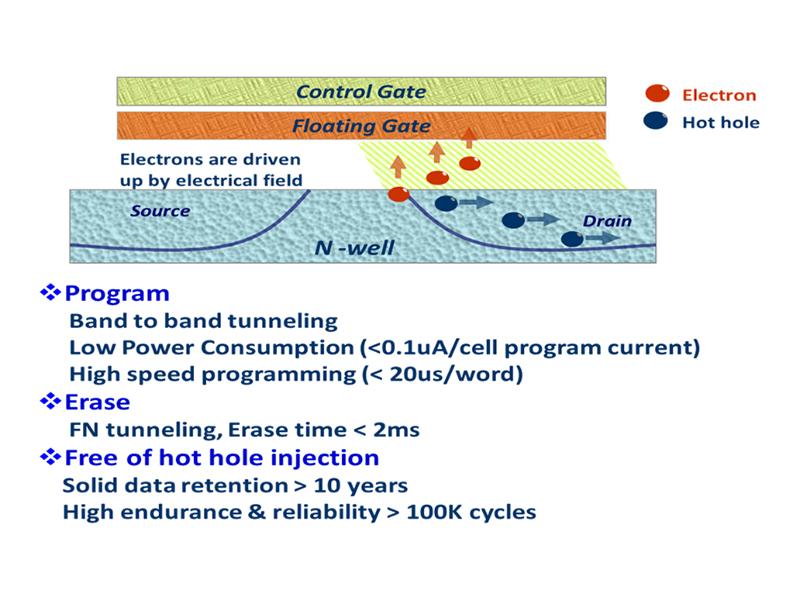

Innovator of pioneering pFusion® architecture P-channel based 2 transistors embedded flash
Best endurance, solid data retention, fast program/erase and read speed at temp. range of -40^oC to +125^oC.
Logic compatible, scalable and small macro area

Advantages

Lower process challenge
>Consistent classic ETOX floating gate structure
> Minimal effort for process development
>Proved solution and short development time
Higher C/P
>Lower process cost
>Competitive macro/cell size
>Shortest test time, build-in serial test interface to minimize test time
Flash macros validation
>Platform macros are fully characterized, and also abundant resource to support customized macros design

0.11 LL 0.11 ULL 0.18um 55nm 0.15um BCD

IP List

產品資訊

0.11um LL eFlash Macros

Density	Configuration	Page size	Infor. Block	VDD	Standby current (typ./max.)	Access time	read current
8Kbyte	x8	512byte	256byte x 2	1.35V~1.65V	1uA/10uA	40ns	150uA/MHz
16Kbyte	x8	512byte	256byte x 2	1.35V~1.65V	1uA/10uA	40ns	150uA/MHz
16Kbyte	x8	512byte	512byte x 4	1.45V~1.65V	1uA/20uA	30ns	300uA/MHz
16Kbyte	x16	512byte	256byte x 2	1.35V~1.65V	1uA/10uA	40ns	200uA/MHz
32Kbyte	x8	512byte	256byte x 2	1.35V~1.65V	1uA/10uA	40ns	150uA/MHz
32Kbyte	x16	1Kbyte	1Kbyte x 2	1.35V~1.65V	1uA/10uA	40ns	200uA/MHz
32Kbyte	x16/x32	1Kbyte	1Kbyte x 2	1.35V~1.65V	1uA/10uA	40ns	250uA/MHz
32Kbyte	x16/x32	1Kbyte	1Kbyte x 2	1.45V~1.65V	1uA/20uA	30ns	300uA/MHz
36Kbyte	x16/x32	1Kbyte	256byte x 2	1.35V~1.65V	1uA/10uA	40ns	250uA/MHz
64Kbyte	x8	512byte	512byte x 2	1.35V~1.65V	1uA/10uA	40ns	250uA/MHz
64Kbyte	x16	1Kbyte	1Kbyte x 2	1.35V~1.65V	1uA/10uA	40ns	250uA/MHz
64Kbyte	x16/x32	1Kbyte	1Kbyte x 2	1.35V~1.65V	1uA/10uA	40ns	250uA/MHz
64Kbyte	x16/x32	1Kbyte	1Kbyte x 4	1.45V~1.65V	1uA/10uA	30ns	250uA/MHz
64Kbyte	x32	1Kbyte	1Kbyte x 8	1.35V~1.65V	0.5uA/20uA	25ns	90uA/MHz
64Kbyte	x39	1Kbyte	1Kbyte x 8	1.35V~1.65V	0.5uA/20uA	25ns	100uA/MHz
64Kbyte	x64	1Kbyte	1Kbyte x 4	1.45V~1.65V	1uA/10uA	30ns	350uA/MHz
64Kbyte	x72	1Kbyte	1Kbyte x 10	1.35V~1.65V	1uA/20uA	40ns	440uA/MHz
128Kbyte	x8	512byte	256byte x 2	1.35V~1.65V	1uA/10uA	40ns	150uA/MHz
128Kbyte	x16/x32	1Kbyte	256byte x 2	1.35V~1.65V	1uA/10uA	40ns	250uA/MHz
128Kbyte	x64	1Kbyte	1Kbyte x 8	1.35V~1.65V	1uA/10uA	40ns	300uA/MHz
128Kbyte	x32	1Kbyte	1Kbyte x 8	1.35V~1.65V	0.5uA/20uA	25ns	90uA/MHz
128Kbyte	x128	1Kbyte	1Kbyte x 8	1.35V~1.65V	0.5uA/20uA	25ns	150uA/MHz
256Kbyte	x16/x32	1Kbyte	1Kbyte x 4	1.35V~1.65V	1uA/10uA	40ns	250uA/MHz
256Kbyte	x64	1Kbyte	1Kbyte x 8	1.35V~1.65V	1uA/10uA	40ns	300uA/MHz
256Kbyte	x32	1Kbyte	1Kbyte x 8	1.35V~1.65V	0.5uA/20uA	25ns	90uA/MHz
256Kbyte	x39	1Kbyte	1Kbyte x 8	1.35V~1.65V	0.5uA/20uA	25ns	100uA/MHz
256Kbyte	x128	1Kbyte	1Kbyte x 8	1.35V~1.65V	0.5uA/20uA	25ns	150uA/MHz

0.11um ULL eFlash Macros

Density	Configuration	Page size	Infor. Block	VDD	Standby current (typ./max.)	Access time	read current
16Kbyte	x8	512byte	512byte x 2	1.35V~1.65V	0.5uA/5uA	40ns	150uA/MHz
32Kbyte	x8	512byte	512byte x 2	1.35V~1.65V	0.5uA/5uA	40ns	150uA/MHz
32Kbyte	x16	1Kbyte	1Kbyte x 2	1.35V~1.65V	0.5uA/5uA	40ns	200uA/MHz
32Kbyte	x16/x32	1Kbyte	1Kbyte x 2	1.35V~1.65V	0.5uA/5uA	40ns	250uA/MHz
64Kbyte	x16	1Kbyte	1Kbyte x 2	1.35V~1.65V	0.5uA/5uA	40ns	200uA/MHz
64Kbyte	x16/x32	1Kbyte	1Kbyte x 2	1.35V~1.65V	0.5uA/5uA	40ns	250uA/MHz
64Kbyte	x39	1Kbyte	1Kbyte x 2	1.35V~1.65V	0.5uA/5uA	30ns	300uA/MHz
64Kbyte	x64	1Kbyte	1Kbyte x 4	1.45V~1.65V	0.5uA/5uA	30ns	350uA/MHz
128Kbyte	x8	512byte	256byte x 2	1.35V~1.65V	0.5uA/5uA	40ns	150uA/MHz
128Kbyte	x16/x32	1Kbyte	256byte x 2	1.35V~1.65V	0.5uA/5uA	40ns	250uA/MHz
512Kbyte	x128	1Kbyte	1Kbyte x 16	1.35V~1.65V	0.5uA/5uA	40ns	450uA/MHz

0.18um eFlash Macros

Density	Configuration	Page size	Infor. Block	VDD	Standby current (typ./max.)	Access time	Read cycle	read current
8Kbyte	x8	1Kbyte	256byte x 1	1.62V~1.98V	1uA/20uA	40ns	50ns	150uA/MHz
16Kbyte	x8	1Kbyte	256byte x 1	1.62V~1.98V	1uA/20uA	40ns	50ns	150uA/MHz
16Kbyte	x16	1Kbyte	256byte x 1	1.62V~1.98V	1uA/20uA	40ns	50ns	150uA/MHz
32Kbyte	x8	1Kbyte	256byte x 1	1.62V~1.98V	1uA/20uA	40ns	50ns	150uA/MHz
32Kbyte	x16	1Kbyte	256byte x 1	1.62V~1.98V	1uA/20uA	40ns	50ns	150uA/MHz
64Kbyte	x8	1Kbyte	256byte x 1	1.62V~1.98V	1uA/20uA	40ns	50ns	150uA/MHz
64Kbyte	x16	1Kbyte	256byte x 1	1.62V~1.98V	1uA/20uA	40ns	50ns	150uA/MHz
128Kbyte	x8	1Kbyte	256byte x 1	1.62V~1.98V	1uA/20uA	40ns	50ns	150uA/MHz
128Kbyte	x16	1Kbyte	256byte x 1	1.62V~1.98V	1uA/20uA	40ns	50ns	150uA/MHz

55nm eFlash Macros

Density	Configuration	Page size	Infor. Block	VDD	Sleep current (typ./max.)	Access time	read current (typ./max) MHz
32Kbyte	x32	512byte	512byte x 4	1.08V~1.32V	3uA/30uA	25ns	50uA/80uA
96Kbyte	x32	512byte	512byte x 4	1.08V~1.32V	3uA/30uA	25ns	50uA/80uA
228Kbyte	x32	512byte	512byte x 4	1.08V~1.32V	3uA/30uA	25ns	50uA/80uA
256Kbyte	x32	512byte	512byte x 4	1.08V~1.32V	3uA/30uA	25ns	50uA/80uA
256Kbyte	x64	512byte	512byte x 4	1.08V~1.32V	0.3uA/3uA	25ns	80uA/120uA
256Kbyte	x128	1Kbyte	1Kbyte x 4	1.08V~1.32V	0.3uA/3uA	25ns	120uA/180uA
256Kbyte	x144	1Kbyte	1Kbyte x 8	1.08V~1.32V	0.3uA/3uA	25ns	130uA/200uA
512Kbyte	x32	1Kbyte	1Kbyte x 4	1.08V~1.32V	0.3uA/3uA	25ns	60uA/100uA
512Kbyte	x39	512byte	512byte x 8	1.08V~1.32V	0.3uA/3uA	25ns	80uA/120uA
512Kbyte	x128	1Kbyte	1Kbyte x 4	1.08V~1.32V	0.3uA/3uA	25ns	160uA/240uA
512Kbyte	x144	1Kbyte	1Kbyte x 8	1.08V~1.32V	0.3uA~3uA	25ns	180uA/270uA

0.15um BCD eFlash Macros :

Density	Configuration	Page size	Infor. Block	VDD	Standby current (typ./max.)	Access time	Read cycle	Read current
64Kbyte	x16	1Kbyte	256byte x 1	1.6V~2.0V	1uA/160uA	40ns	50ns	200uA
64Kbyte	x39	1Kbyte	1Kbyte x 2	1.6V~2.0V	1uA/160uA	40ns	50ns	350uA
96Kbyte	x16	1Kbyte	256byte x 1	1.6V~2.0V	1uA/160uA	40ns	50ns	200uA
